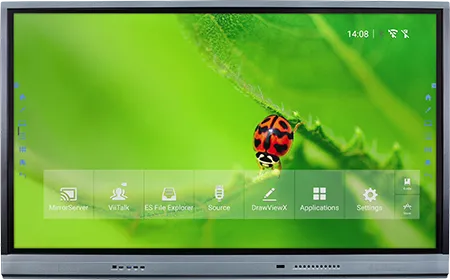

TE-XP1-65 Starboard 65inch interactive display

Specifications
StarBoard TE-XP1
Back input Front input Back output OPS *
Display Sizes 65’’ 75’’ 86’’ WIFI 1 (5G)
Resolution 3840×2160 RJ45 1
Touch Port 1
HDMI 2.0 2 1 1
VGA 1 1
Glass 4mm tempered glass Audio 1 1
View angle 178° RS232 1
Aspect ratio 16:9 SD Card 1
Brightness 350 cd/m2 YPbPr 1
65’’: 4000:1 DP 1
75’’: 4000:1 HeadPhone 1
86’’: 1200:1 AV 1
Colors 10 Bit + FRC (1.07 Billion) COXIAL 1
1024×768 / 1280×720 / 1280×960 USB 2.0 1 2
1280×1024 / 1360×768 / 1440×900 Touch USB 1 1 1
1600×1200 / 1920×1080 / 3840×2160 USB 3.0 1 1
65’’: 5-8 ms *OPS is based on an Intel Core i5 processor witch is an optional extra.
75’’: 6-8 ms
86’’: 8-12 ms
Standby
System Android 9.0
GPU Quad core Mali G52
CPU 4*ARM Cortex-A55 Voltage range
RAM 3G
ROM 32G
Bluetooth 5.0
Working temp. 0°c – 40°c
Touch points Up to 20 Points
Finger, pen, or any
non-transparent object
Touch Technology IR Technology
Accuracy <3 mm Positioning Res. 4096x4096/16384x16384/32768x32768 Response time <8ms Cursor speed >180 dot/Sec
Comm. Port USB Life Spam
Product dimension
65’’: 1486×923.9×101.1 mm
75’’: 1712.5×1054.3×104.8 mm
86’’: 1959×1192.8×101.8 mm
50.000 Hours
