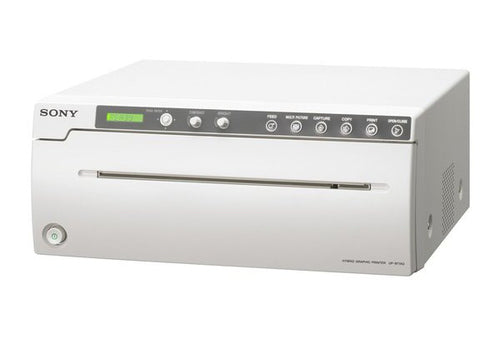

UP-971AD
Fast, high quality black & white printing from both analogue and digital imaging inputs onto paper
The UP-971AD is a compact black and white printer designed for use with both analogue and digital radiology imaging systems such as mobile C-arm, ultrasound, cardiac catheterisation laboratory and other compatible medical imaging systems.
Smaller than its predecessor (the UP-970AD), it provides high-quality hard copies of still images captured by the imaging system, that can then be used as reference prints for patient record purposes or referrals. (Please note that images printed from the UP-971AD are not to be used for diagnosis).
Printing options are expanded with a choice of Multi-picture modes for multiple images on a single sheet, plus a panoramic printing capability to produce extra-wide images.
Wireless Printing Capability
By using the optional UPA-WU10* Wireless Print System, you can achieve cable-free connection between the Sony digital printer with 5V USB output port**, mobile C-arm and other hospital imaging modalities.
* Product availability of the UPA-WU10 may vary according to the sales area. For more information, please contact your nearest Sony sales office or an authorized dealer.
** For more information about compatible printers, please contact your nearest Sony sales office or an authorised dealer.
Printing Method
Direct thermal printing
Gradations
8 bits (256 levels) processing
Picture Elements
Digital: 7680 x 2560 dots
Video NTSC: 720 x 504 dots
Video PAL: 720 x 604 dots
Picture Area
DIGITAL:
600 x 200 mm (23 5/8 x 7 7/8 inch) (Max)
VIDEO:
STD NTSC: 182 x 144 mm
PAL: 188 x 140 mm
SIDE NTSC: 244 x 184 mm
PAL: 244 x 183 mm
Paper Size
Paper width of 210 mm (8 1/4 inches)
Printing Time
Approx. 8 seconds/image (in standard mode)
Picture Memory
Digital: 2816 x 7680 x 8 bits
Video: 6 frames (720 x 608 x 8 bits for one frame)
Interface
Hi-Speed USB (USB 2.0) (x1)
VIDEO INPUT: BNC type (X1)
NTSC or PAL composite video signals
1.0Vp-p, 75ohm (NTSC/PAL automatically discriminated)
VIDEO OUTPUT: BNC type (x1) Loop-through
REMOTE: Stereo mini jack (x1)
Printer Driver Software
Microsoft Windows XP 32/64, Vista 32/64, 7 32/64, 8 32/64
Power Requirements
AC 100 V to 240 V, 50/60 Hz
Input Current
2.9 A to 1.2 A
Operating Temperature
5°C to 35°C (41°F to 95°F)
Operating Humidity
20% to 80% (no condensation allowed)
Storage and Transport Temperature
-20°C to +60°C (-4°F to +140°F)
Storage and Transport Humidity
20% to 80%
Dimensions (W x H x D)
316 x 132.5 x 265 mm (12 1/2 x 5 1/4 x 10 1/2 inch)
Supplied Accessories
Print Media (1), Thermal head cleaning sheet (1), CD-ROM (1), Before Using this Printer (1), Service Contact List (1)
A4 Analogue and Digital Printer for Black and White Thermal Paper
