- Large displays optimized for DOOH
- The OHN series has elevated the typical outdoor advertising experience with its bold and engaging content delivery for any bus stop or street billboard. The OHN series will make any business standout from the crowd with its immersive and high-quality images and content.

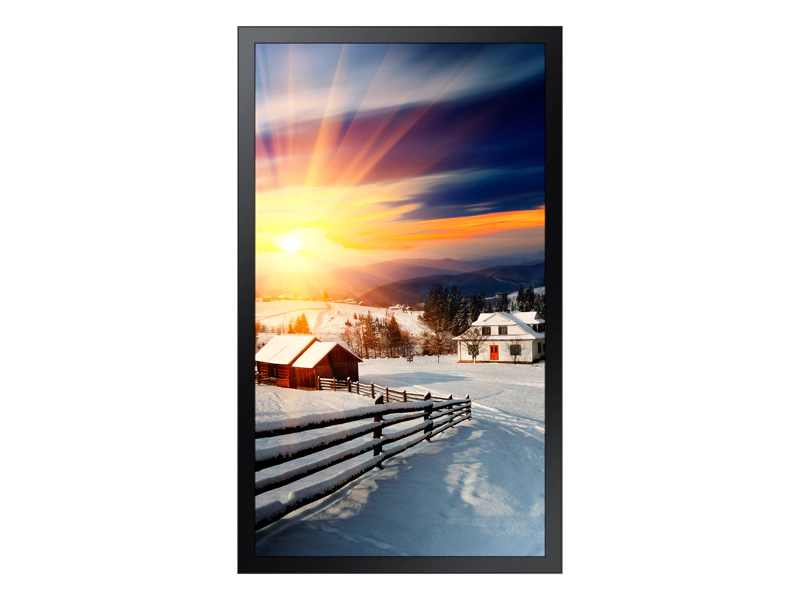

Samsung 85″ Outdoor Display OH85N
R421 392 Incl VAT
Samsung 85″ Outdoor Display – 4K Uhd, 24/7 Usage, 3000Nit Brightness, Soc Media Player: Sssp 6
- Deliver bright, creative messages on robust outdoor signage.
- 85″ large-sized digital displays optimized for outdoor usage
- Excellent visibility under direct sunlight through 3,000nit high brightness
- Optimal durability with IP56-rated displays
- Advanced content management via MagicINFO S6 Player powered by TIZEN
| Panel | |||
| Diagonal Size | 85 | ||
| Type | 60Hz D-LED Local Dim. BLU | ||
| Resolution | 3840*2160 (4K UHD) | ||
| Pixel Pitch(mm) | 0.488 x 0.488 | ||
| Active Display Area(mm) | 1872(H) x 1053(V) | ||
| Brightness(Typ.) | 3,300 (w/o glass) nit | ||
| Contrast Ratio | 3000:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 8ms | ||
| Display Colors | 8 bit – 16.7 Mbit | ||
| Color Gamut | 72% | ||
| Operation Hour | N/A | ||
| Haze | 0% | ||
| Display | |||
| Dynamic C/R | 100,000:1 | ||
| H-Scanning Frequency | 15 ~ 135KHz (HDMI), 30 ~ 135KHz (DP) | ||
| V-Scanning Frequency | 24 ~ 75Hz (HDMI), 30 ~ 75Hz (DP) | ||
| Maximum Pixel Frequency | 594MHz (HDMI), 533.25MHz (DP) | ||
| Connectivity | |||
| Input | |||
| RGB | DP 1.2 | ||
| Video | HDMI 2.0 (2) | ||
| HDCP | HDCP 2.2 | ||
| USB | USB 2.0 (1) | ||
| Output | |||
| Audio | Stereo Mini Jack | ||
| External Control | RS232C (In), RJ45 (In) | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 – 240 V (+/- 10 %), 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 1800 | ||
| Typical[W/h] | W/W(EU) 600US/KOR/Etc. 1,010※ Etc: CHINA, TAIWAN, BRA | ||
| BTU(Max) | 6138 | ||
| Sleep mode | less than 1W | ||
| Off mode | less than 1W | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 2,004 x 1,185 x 120 mm | ||
| Package | 2,175 x 1,383 x 495 mm (Without Pallet) | ||
| Weight (kg) | |||
| Set | 137kg | ||
| Package | 185kg | ||
| Operation | |||
| Operating Temperature | -30 ℃ ~ 50 ℃ | Humidity | 10 % ~ 100 % (Non-Condensing) |
| Feature | |||
| Key Features | Slim High Brightness, IP56 Outdoor,Built-in MagicInfo Player S6, SSSP6 | ||
| Orientation | N/A | ||
| Remote Control | N/A | ||
| Special Features | IP56 Rated Simple Enclosure Outdoor, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping) | ||
| Internal Player | Processor | Cortex A72 1.7GHz Quad-Core CPU | |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | ||
| Clock Speed | 1.7GHz | ||
| Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit | ||
| Graphics | Graphic resolution : 1920×1080 Output resolution : up to 3840×2160 (Scale up from graphic processing result.) – Supports OpenGL ES | ||
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
| Multimedia | Video Decoder – MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC – VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder – AC3 (DD), MPEG | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 4.0 (VDLinux) | ||
| Certification | |||
| Safety | CB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1 | ||
| EMC | ‘FCC (USA) : Part 15, Subpart B Class B CE (Europe) : EN55032:2015 Class B EN55035:2017 | ||
| IP Rating | IP56 | ||
| Accessory | |||
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries | ||
| Optional | |||
| Stand | N/A | ||
| Mount | N/A | ||
| Specialty | N/A | ||
| Media Player | |||
| Media Player | N/A | ||
