- Entice customers with exceptional visibility
- Catch the attention of customers with high brightness window displays that deliver flawless colors in UHD resolution. Vivid and visible even in direct sunlight, the OM75A also offers a slim design with embedded media player for optimal space efficiency and easy content management for store managers.

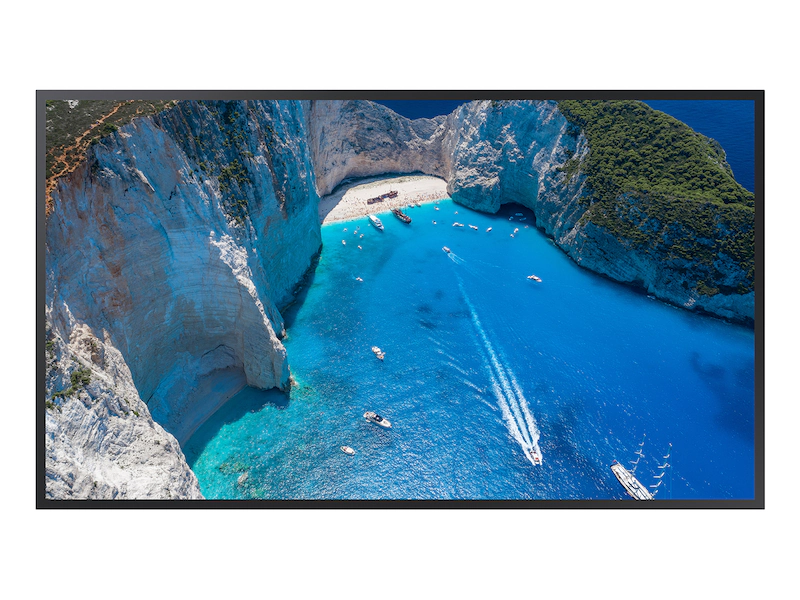

Samsung 75″ Semi Outdoor OM75A
R162 508 Incl VAT
Samsung 75″ Semi Outdoor – Uhd, 24/7 Usage, 4000Nit Brightness, Soc Media Player: Sssp 7
- Exceptional visibility with bright and flawless window signage
- Vivid and visible even in direct sunlight in 4K UHD resolution
- High brightness window displays that deliver flawless colors with 4,000nit 24/7 performance
- Slim design that complements the surroundings of any environment
- Proprietary functionality with IP5X-validated dust protection and embedded
| Panel | |||
| Diagonal Size | 75 | ||
| Type | 60Hz D-LED BLU | ||
| Resolution | 3840*2160 (4K UHD) | ||
| Pixel Pitch(mm) | 0.4296 x 0.4296 | ||
| Active Display Area(mm) | 1649.664(H) x 927.936(V) | ||
| Brightness(Typ.) | 4000 nit | ||
| Contrast Ratio | 1200:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 14ms | ||
| Display Colors | 1.07G | ||
| Color Gamut | NTSC 72% | ||
| Operation Hour | 24/7 | ||
| Haze | 1% | ||
| Display | |||
| H-Scanning Frequency | 15~81KHz (HDMI), 30~135KHz (DP) | ||
| V-Scanning Frequency | 24~75Hz (HDMI), 30~75Hz (DP) | ||
| Maximum Pixel Frequency | 77MHz | ||
| Connectivity | |||
| Input | |||
| RGB | Display Port 1.2 (1) | ||
| Video | HDMI2.0 (2) | ||
| HDCP | HDCP 2.2 | ||
| USB | USB 2.0 (1) | ||
| Output | |||
| RGB | HDMI 2.0 | ||
| Video | Yes | ||
| Audio | Stereo Mini Jack | ||
| External Control | RS232C (In/Out), RJ45 (In) | ||
| External Sensor | Detachable Type (IR, Ambient) | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 – 240 V, 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 900 | ||
| Typical[W/h] | 385 ※ IEC 62087 measurement standard | ||
| BTU(Max) | 3,069 | ||
| Sleep mode | 0.5W | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 1703.1 x 981.1 x 85.4 | ||
| Package | 1890 x 1144 x 215 | ||
| Weight (kg) | |||
| Set | 37.2kg | ||
| Package | 48.5kg | ||
| VESA Mount (mm) | 400 x 400 mm | ||
| Bezel Width (mm) | 23.9 | ||
| Operation | |||
| Operating Temperature | 0 ℃ ~ 40 ℃ | Humidity | 10 % ~ 80 % |
| Feature | |||
| Key Features | High brightness Semi-Outdoor Slim & Clean back design Built-in MagicInfo Player S7, SSSP 7.0 | ||
| Orientation | Landscape / Portrait | ||
| Remote Control | N/A | ||
| Special Features | IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), WiFi Module Embedded | ||
| Internal Player | Processor | Cortex A72 1.7GHz Quad-Core CPU | |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB / L1 Data Cache : 32KB / L2 Cache : 2MB | ||
| Clock Speed | 1.7GHz | ||
| Main Memory Interface | 2.5GB / LPDDR4 1600MHz 64bit | ||
| Graphics | Graphic resolution : 1920×1080 / Output resolution : 7680×4320 (Scale up from graphic processing result.) | ||
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
| Multimedia | Video Decoder FHD MFD : VP8, H.264, AVS+(60Hz)UHD MFD : HEVC, H.264, VP95K HEVC Decoder, SHVC(ATSC3.0)AVS2.0 HEVC / AVS2.0 1xUHD120p (DP_NR off, FRC bypass) Audio Decoder – AC3 (DD), MPEG | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 5.0 (VDLinux) | ||
| Certification | |||
| Safety | 60950-1 | ||
| EMC | Class A | ||
| Accessory | |||
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor | ||
| Optional | |||
| Stand | N/A | ||
| Mount | N/A | ||
| Specialty | N/A | ||
| Media Player | |||
| Media Player | N/A | ||
