- Time to upscale your display
- Samsung’s new QBR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

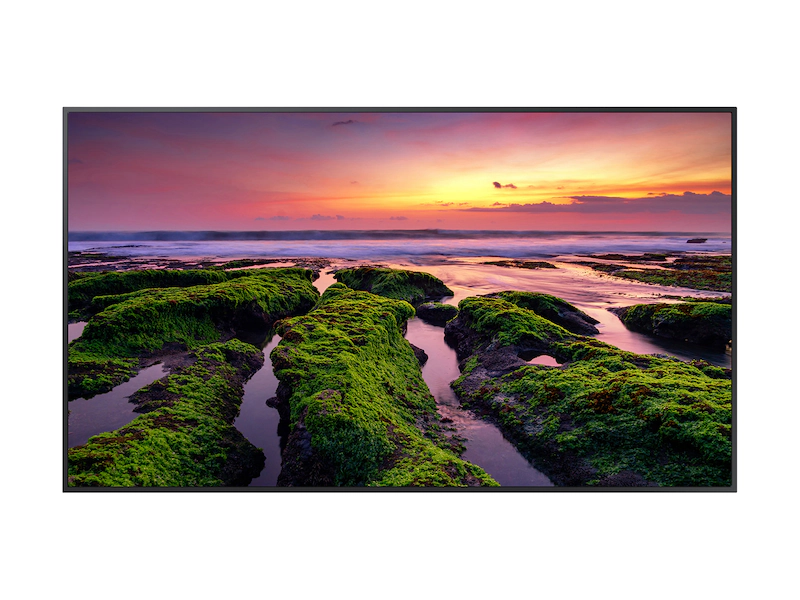

Samsung 75″ Professional Display QB75B
R40 639 Incl VAT
Samsung 75″ Professional Display – 4K Uhd, 16/7 Usage, 350Nit Brightness, Soc Media Player: Sssp 9
- Display any content in ultra-high definition with incredibly rich color on slim, efficient signage.
- Engage customers with lifelike images through ultra high-definition resolution
- Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
- Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades
| Panel | |||
| Diagonal Size | 75 | ||
| Type | Edge LED BLU | ||
| Resolution | 3840*2160 (4K UHD) | ||
| Pixel Pitch(mm) | 0.42975 x 0.42975 | ||
| Active Display Area(mm) | 1650.24 (H) x 928.26 (V) | ||
| Brightness(Typ.) | 350 nit | ||
| Contrast Ratio | 4000:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 8ms(Typ.) | ||
| Display Colors | 16.7M(True Display) 1.07B(Ditherd 10bit) | ||
| Color Gamut | 92% (DCI-P3, CIE 1976) | ||
| Operation Hour | 16/7 | ||
| Haze | 2% | ||
| Display | |||
| Dynamic C/R | MEGA | ||
| H-Scanning Frequency | 30 ~ 81kHZ | ||
| V-Scanning Frequency | 48 ~ 75HZ | ||
| Maximum Pixel Frequency | 594MHz | ||
| Sound | |||
| Speaker Type | Built in Speaker(10W + 10W) | ||
| Connectivity | |||
| Input | |||
| RGB | DVI-D | ||
| Video | HDMI 2.0 (2) | ||
| HDCP | HDCP 2.2 | ||
| Audio | Stereo Mini Jack, DVI/HDMI/Audio(Common) | ||
| USB | USB 2.0 x 2 | ||
| Output | |||
| Audio | Stereo Mini Jack | ||
| External Control | RS232C(in/out) thru stereo jack, RJ45 | ||
| External Sensor | IR | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 231 | ||
| Typical[W/h] | 150 | ||
| Rating[W/h] | 210 | ||
| BTU(Max) | 787.7 | ||
| Sleep mode | 0.5 | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 1681.1 x 960.1 x 49.7 | ||
| Package | 1871 x 1127 x 223 | ||
| Weight (kg) | |||
| Set | 38.3 | ||
| Package | 49 | ||
| VESA Mount (mm) | 400 X 400 | ||
| Stand Type | No | ||
| Bezel Width (mm) | 11.5mm(U/L/R), 12.5mm(B) | ||
| Operation | |||
| Operating Temperature | 0 ℃ ~ 40 ℃ | Humidity | 10 % ~ 80 % |
| Feature | |||
| Key Features | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 | ||
| Orientation | N/A | ||
| Remote Control | N/A | ||
| Special Features | H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | ||
| Internal Player | Processor | Coretex A72 1.7GHz Quad-Core CPU | |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | ||
| Clock Speed | 1.7GHz | ||
| Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit | ||
| Graphics | Graphic resolution : 1920×1080 Output resolution : 3840×2160 (Scale up from graphic processing result.) | ||
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
| Multimedia | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 4.0 (VDLinux) | ||
| Certification | |||
| Safety | 60950-1 | ||
| EMC | Class B | ||
| Security | 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP | ||
| Accessory | |||
| Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | ||
| Optional | |||
| Stand | No | ||
| Mount | WMN4277SE WMN6575SE | ||
| Specialty | CML450K | ||
| Media Player | |||
| Media Player | N/A | ||
