• Seamless canvas for purer black levels with enhanced depth via Black Seal Technology
• Spectacular vibrancy for superior color purity to recreate scenes with Ultra Chroma Technology
• Reinvented installation process
• All-inclusive components built-in from control box to speaker

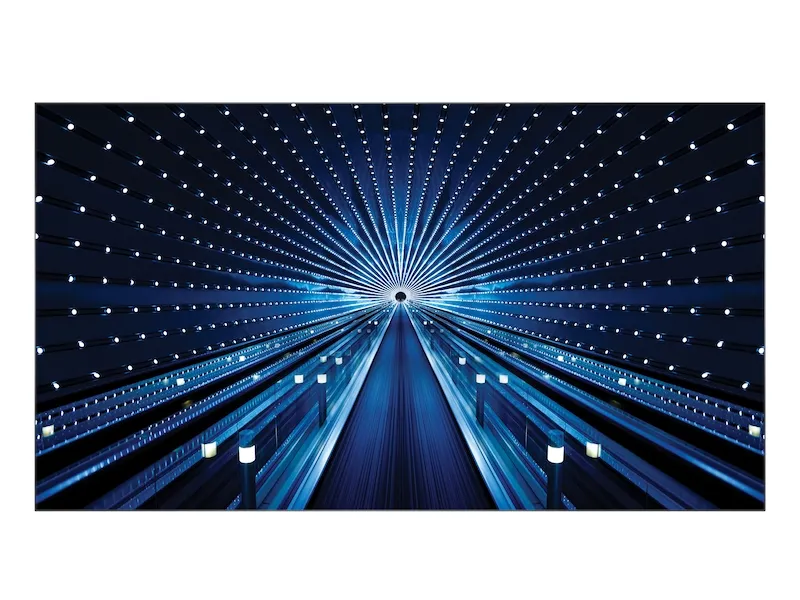

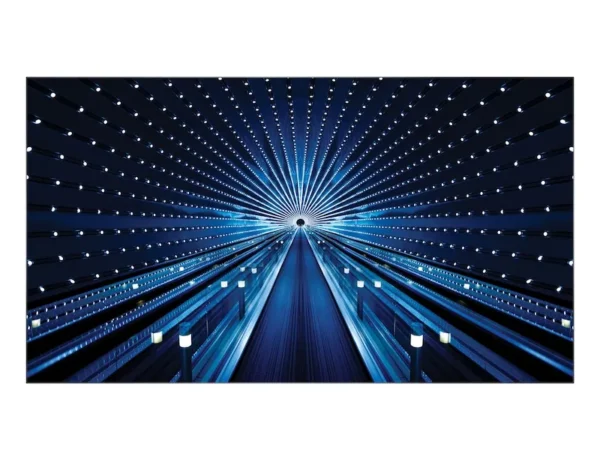

Samsung 146″ All-In-One LH008IAB
R4 854 646 Incl VAT
On Request
Samsung 146″ All-In-One (Micro Led) Display – Uhd, 0.84Mm Pixel Pitch, 1600Nit Brightness Peak, 16 X 12 Modules (Wxh) Per Cabinet, Tizen 6.5, Wifi & Bt
-
Physical Parameter
Pixel Pitch
0.84 ㎜
Pixel Configuration
1 red, 1 green, 1 blue
Diode Type
Flip-chip RGB LED
Configuration (LxH, per screen)
3840 x 2160 pixels
Dimensions (mm, LxHxD, per screen)
127 x 71.4 x 2 in
Dimensions (inch, per screen)
145.7 x 1.9 inch
No. of Modules (WxH, per screen)
16 x 12
Weight (per screen)
168 kg
Size
146″ UHD
Type
IA Series
-
Optical Parameter
Brightness
Yes
Brightness (Peak / Max)
1600 nit / 500 nit
Contrast Ratio
24,000 : 1
HDR Compatibility
LED HDR / HDR10+ support / AI Picture
Viewing Angle – Horizontal
170°
Viewing Angle – Vertical
155°
Bit Depth
16 bit (Internal processing 20bit)
Color Temperature (Default)
6,500K ± 500K (Floating bin)
Color Temperature (Adjustable)
2,800K ~ 10,000K
Brightness (Peak/Max) (1)
1600 nit / 500 nit
-
Electrical Parameter
Video Rate
50/60 Hz 100/120 (FRC) Hz
Input Power Range
100~240 VAC, 50/60 Hz
Power Consumption (Max)
1240 (W/Screen)
Power Consumption (Typical)
860 (W/Screen)
Heat Generation – Typ
3753 (BTU/Screen)
Refresh Rate
3,840 Hz
Heat Generation – Max
5800 (BTU/Screen)
-
Operation Conditions
Working Temperature / Humidity
0℃~+40℃ / 10%~80%RH
Storage Temperature / Humidity
-20℃~+45℃ / 5%~95%RH
IP Rating
IP20
LED Lifetime
150,000 hours
-
Package
Package Weight (per Cabinet)
301 kg
Box Dimension (mm, WxHxD)
2,000 × 2,162 × 1,000
-
Certification
Eye-protection
TUV Low Blue Light
-
Service
Service
Front
-
Features
Operating System
Tizen 6.5
MagicINFO
Yes
Sensor
Temperature, Eco Sensor
Other
AI Picture, LED HDR, HDR10/10+, Dynamic Peaking
Other SW Features
Workspace (Microsoft365/VMWare/RDP), Auto Source Switching & Recovery, Dicom Simulation Mode, SmartView+(PC)
-
Connectivity / Sounds
Controller
Built-in
Input (Video)
DP 1.2 (1), HDMI 2.0 (3), USB 2.0 (2)
Output
Audio (Stereo mini Jack) / eARC
WiFi / BT
O / O
External Control
RS232C(in), RJ45
Speaker
10W 2ch
-
Accessories
Accessories
Décor Frame, Frame Kit, Buffer parts (18 Modules, 1 T-Con, 1 SMPS)
Remote Control
IR Remote Controller
-
Special Installation
Other
Side by Side Installation with additional frame kit (up to 4 screens)
-
Certification and Compliance
Safety
62368-1, 60950-1
EMC
Class A
Reviews
There are no reviews yet.
