RGBlink ASKâ„¢ collaboration system takes screen sharing to a new level for laptops, tablets and mobile devices.

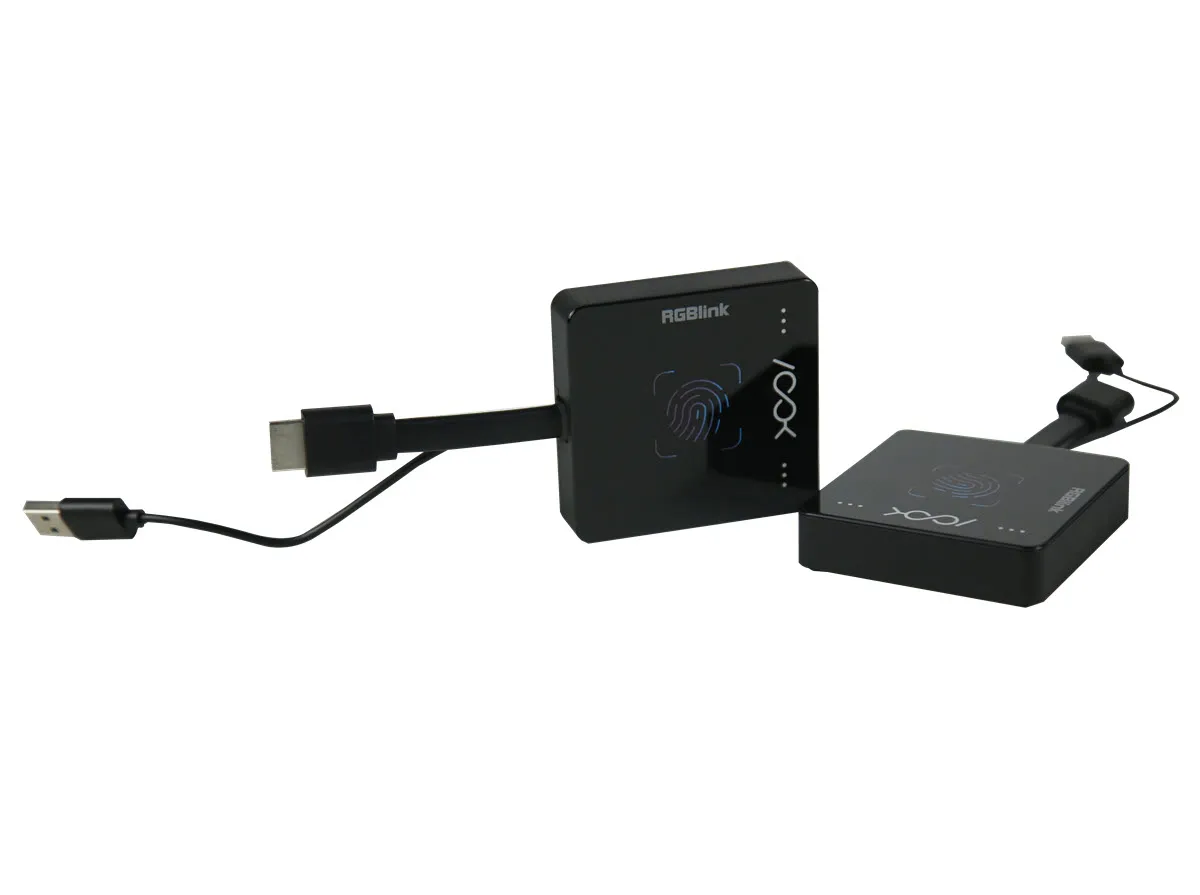

Simply connect a compact ASK transmitter to a Windows or macOS device for fast, driver free connection to an ASK Receiver display with low latency, high frame rates, full colour gamut video, and without any compression or image loss. Other devices, simply connect with MiraCast or AirPlay.
Display up to four devices on the display connected to an ASK Receiver and collaborate even further with the built-in Whiteboard features .
Connect multiple ASK Receivers to extend collaboration to multiple large screen displays, making ASK ideal across meetings and conferences, education and integration with live streaming events.
ASK – wireless Advanced Sharing and (K)ollaboration.
Hi-Performance Automatically
The ASK system adapts automatically to the
input video resolution, transmitting
automatically with full YUV color gamut and
4:4:4 color space via the integral hardware
video processing engine, providing maximum
video performance and quality
Receiver
Connectors Output HDMI 2.0 1×HDMI-A
Communication LAN 1×RJ45
USB 2×USB-A
Power USB 1×micro USB
Performance Output Resolutions HDMI Subject to native resolution of display connected
VESA 1280×720@60 | 1920×1080@60 | 3840×2160@60
Supported Standards HDMI 2.0
Power Input Voltage DC 5V/2A
Max Power 10W
Environment Temperature -0℃～70℃
Humidity 10%~85%
Physical Weight Net 0.3kg
Packaged 1.15kg (Set with 2 TX )
Dimension Net 85mm×85mm×73.5mm
Packaged 164mm×197mm×114mm (Set with 2 TX)
Transmitter
Connectors Input HDMI 1.3 (on cable) 1×HDMI-A
Power USB (on cable) 1×USB-A
Performance Output Resolutions HDMI
VESA 800×600@60 |1024×768@60 |1280×720@60 |1280×800@60 |1280×960@60 |
1280×1024@60 | 1400×1050@60 |1600×1200@60 | 1920×1080@60
Supported Standards HDMI 1.3
Power Input Voltage DC 5V/500mA
Max Power 2.5W
Environment Temperature -0℃～70℃
Humidity 10%~85%
Physical Weight Net 0.1kg
Packaged 1.15kg (Set with 2 TX )
Dimension Net 70mm×73mm×16mm （without cable)
Packaged 164mm×197mm×114mm(Set with 2 TX)
