Key Features
5.5-inch touchscreen operationNetwork
HD streamingSeamless switcher2*UVC inputs,
2*HDMI 1.3 input and 1* HDMI 2.0 outputNDI 5.0 encoder
NDI decoder
Recording via USB 2.0 port, mobile hard disk stores up to 2T
Multistream up to 4 Live Streaming platforms simultaneously

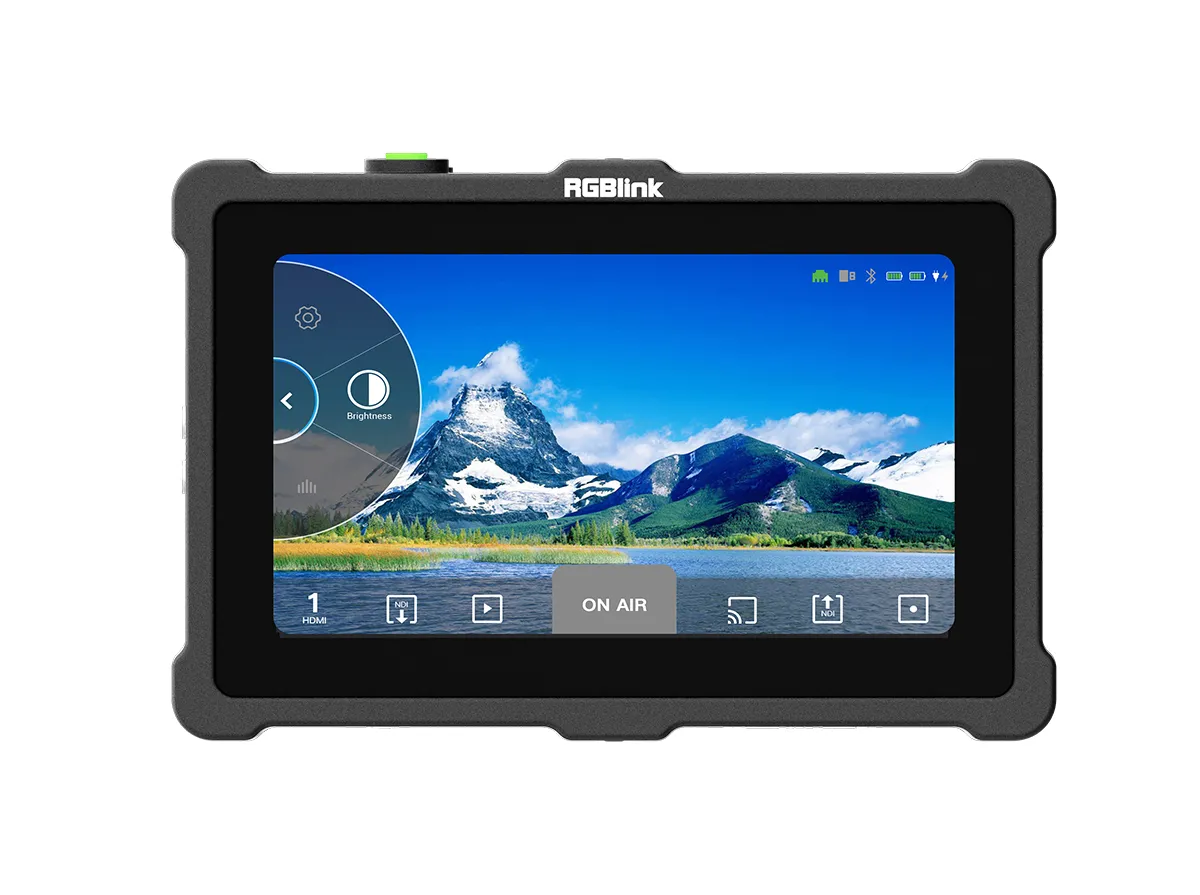

Rgblink Tao 1 Pro Recorder-Switcher-Streamer 410-5513-01-0
R6 866 Incl VAT
TAO 1pro Recorder-Switcher-Streamer
TAO 1pro is a Broadcasting streaming decoder with a 5.5 inch FHD preview display,but also a 4 channels seamless video switcher for 2 USB 3.0 and 2 HDMI 1.3 inputs, and supports streaming directly by ethernet output which is ready to connect to external cloud based router and streaming from Anywhere to Everywhere.
TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol, and brings itself as a much affordable and user friendly streaming tools for anybody, the talents who is willing to be Anchor Online.
TAO 1pro is also with touch panel for finger configuration, and with optional 2 chargable battery extending its capacity for outdoor application.
Connectors Input HDMI 1.3 2×HDMI-A
USB 3.0 2×USB TypeA
Output HDMI 2.0 1×HDMI-A
Record USB 2.0 1×USB TypeA
Audio In 1×3.5mm Audio Jack
Out 1×3.5mm Audio Jack
Communication/Stream LAN 1×RJ45
Power 1×USB-C
Performance Input Resolutions HDMI
SMPTE 720p@50/60 | 1080p@23/24/60
VESA 1024×768@60 | 1280×720@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 |
1600×1200@60 | 1680×1050@60 | 1920×1080@60
Output Resolutions HDMI
SMPTE 720p@50/60 | 1080p@24/25/50/60 | 2160p@60
VESA 1024×768@60 | 1280×720@50/60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 |
1920×1080@50/60 | 3840×2160@60
Supported Standard HDMI 1.3(Input) | 2.0(Output)
USB 3.0
Screen Feature Screen Dimension 5.5 ’’TFT
Resolution 1080×1920 pixels
Dot Pitch 0.063(H)×0.021(W)(mm)
Aspect Ratio 16:9
Brightness 450cd/m²
Contrast 1000:1
Backlight LED
View Angle 80°/80°(L/R)80°/80°(U/D)
Power Input Voltage 9V/2A
Max Power 18W
Environment Temperature 0℃~55℃
Humidity 5%~85%
Physical Weight Net 350g(without battery);882g(with battery)
Package 770g
Dimension Net 161mm×106mm×36mm
Package 255mm×145mm×85mm
TAO 1pro is a Broadcasting streaming decoder with a 5.5 inch FHD preview display,but also a 4 channels seamless video switcher for 2 USB 3.0 and 2 HDMI 1.3 inputs, and supports streaming directly by ethernet output which is ready to connect to external cloud based router and streaming from Anywhere to Everywhere.
TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol, and brings itself as a much affordable and user friendly streaming tools for anybody, the talents who is willing to be Anchor Online.
TAO 1pro is also with touch panel for finger configuration, and with optional 2 chargable battery extending its capacity for outdoor application.
