Key Features
● Multipel control and network protocol
● LCD screen on front panel with key tone
● Control code modified by customers
● Camera speed control via joystick
● Camera parameter s adjustment via keys
● Multiple control connectors ,up to 255 cameras
● Support PoE

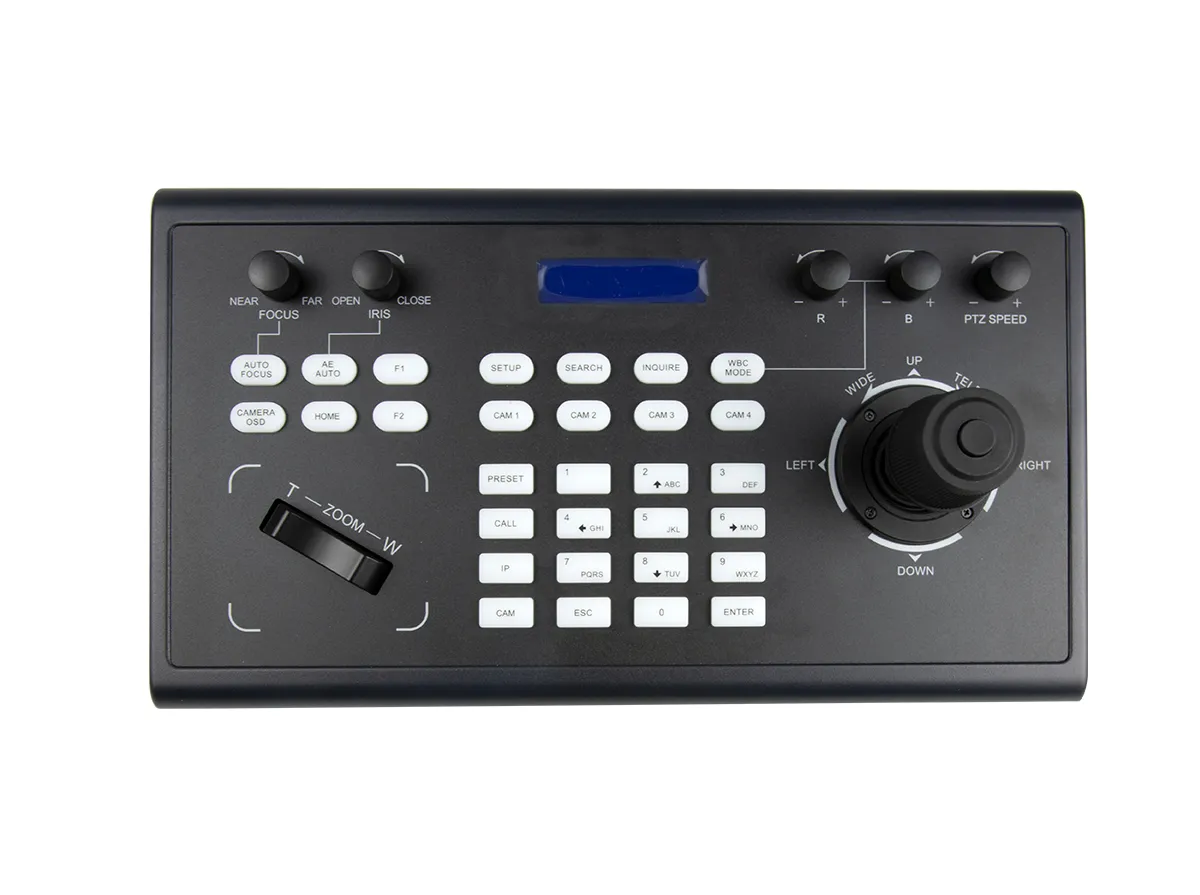

Rgblink Rgbctl-Ptz-Bk Ptz Camera Controller 981-1000-03-0
R13 161 Incl VAT
PTZ Camera Controller
RGBCTL-PTZ-BK PTZ Camera Controller
Please contact sales@itpalacestore.co.za for an updated ETA
PTZ Camera Controller is compliance to Ethernet/Seriel Camra，
supporting Onvif，Visca abd elco-D/P Protocols.Via controller,
Users can switch PTZ cameras fastly and adjust the parameters.
Connectors Communication RS232 1×DB15
RS422 (RS485) 1×5Pin Terminal
LAN 1×RJ45
Performance Control Protocol VISCA | Pelco-D | Pelco-P
Network Protocol ONVIF | VISCA
Baud Rate(dps) 2400 | 4800 | 9600 | 19200 | 38400 | 115200
Display LCD Screen
Key Tone ON/OFF
Joystick Four dimensions (control: up, down, left, right, zoom, rotation)
Upgrade WEB upgrade
Power Input Voltage DC12V
Max Power 0.6W
Environment Temperature 0℃～50℃
Humidity 0%～90%
Physical Dimension 320mm×180mm×100mm
PTZ Camera Controller is compliance to Ethernet/Seriel Camra，
supporting Onvif，Visca abd elco-D/P Protocols.Via controller,
Users can switch PTZ cameras fastly and adjust the parameters.
