Key Features
High speed optical zoom
RTSP/RTMP/SRT encoding output
High performance in low light scenarios with Wide Dynamic Range
Full 1920×1080p HD resolutions up to 60 frames per second
H.265/H.264 dual stream output adapted to different network environments
Pan and Tilt Control
12X/20X/30X optical zoom
Applicable to meeting, live streaming, church, classroom and more
Low-power sleep function
Support TALLY
Support PoE

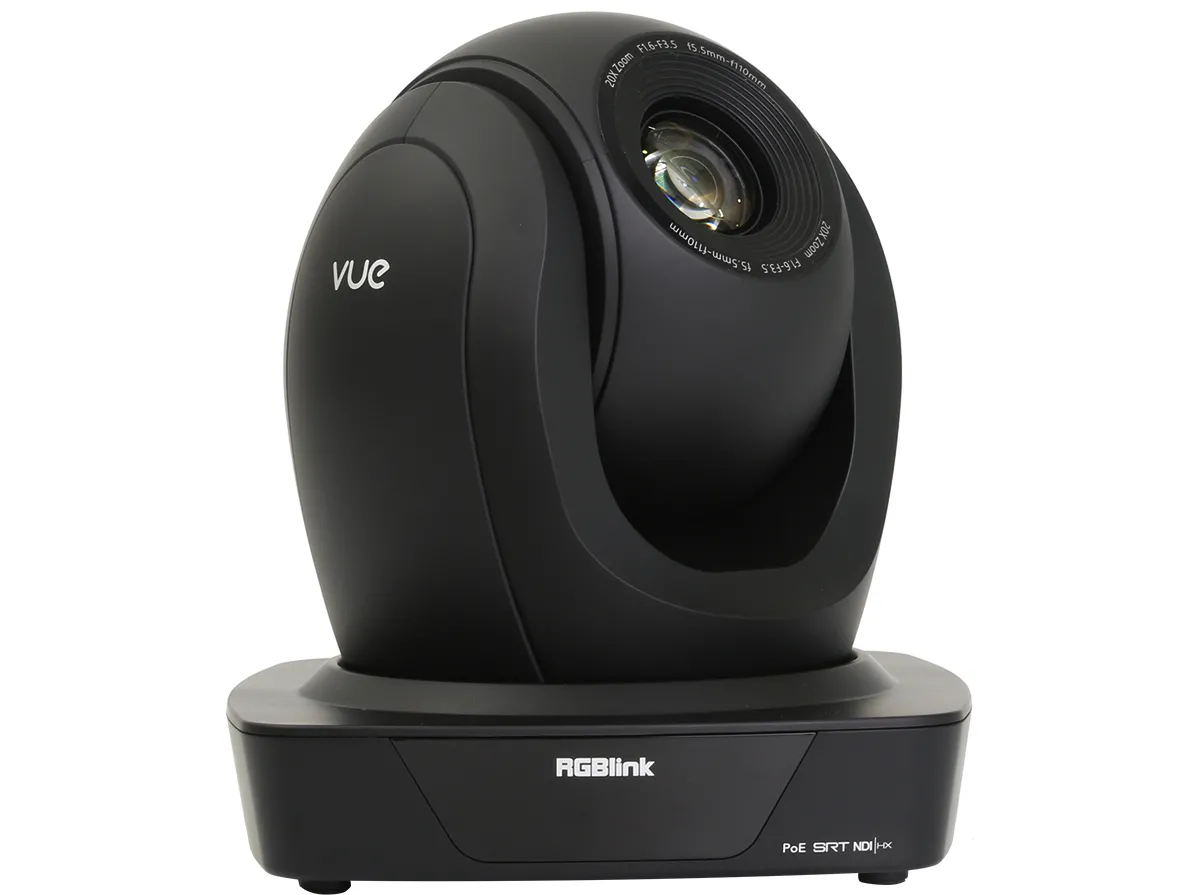

RGBlink 30x-POE-WU 30X-Poe-Tly 30X Optical Zoom Hd Ptz Camera
R20 776 Incl VAT
30X PTZ Camera with TALLY (Support PoE)
Please contact sales@itpalacestore.co.za for an updated ETA
Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras.
Featuring advanced an ISP image processor and a 2 mega pixel sensor, vue cameras are available in a range models across 12X, 20X & 30X optical zoom and a range of output options from HDMI & SDI to H.264, H.265 & NDI.
Pan, Tilt, Zoom to capture all the action – get in even closer with 10X digital zoom, and the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps. All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment
Interface Output 3G SDI 1xBNC
HDMI 1xHDMI-A
USB 1xUSB-A
LAN 1xRJ45
Audio IN 1×3.5mm Stereo Jack
Control RS232 IN/OUT 2xDIN8
RS485 1x4pin Terminal
Power 1xDC12V Jack
Performance Camera 12X 20X 30X
Optical Zoom f＝4.1～49.2mm f＝4.8～96mm f＝5.2～148.4mm
View Angle 6.57°～ 70.28° 3.45°～ 60.04° 2.14°～58.1°
AV F1.8 ～ F2.68 F1.8 ～ F2.9 F1.3 ～ F4.8
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto/Manual
Aperture/Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/Dynamic Level Adjustment
Video Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
SNR >55dB
Effective Pixels
2.07m,16:9
Pan-and-Tilt Parameter Pan/Tilt Movement
-170°～+170°/’-30°～+90°
Pan/Tilt Control Speed
0.1～60°/S；0.1～30°/S
Preset Speed/Quantity
Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
360° TALLY full 360° view of TALLY
Audio Compression Format AAC | MP3 | G.711A
Video Compression Format H.264 | H.265 | Dual Streaming Output
Output Resolutions 720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60
Control Protocol VISCA | Pelco-D | Pelco-P | ONVIF
Baud Rate(bps) 115200 | 9600 | 4800 | 2400bps
Network Protocol RTSP | RTMP | SRT | ONVIF
Supported Standards SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
Power Input Voltage DC12V/1.5A
Max Power 12W
Environment Temperature -10℃～50℃
Humidity 20%～80%
Physical Weight Net 1.7kg
Dimension Net 180mm(front)×188mm(side)×198mm(height)
RGBlink Vue PTZ Camera
Whether outputting to HDMI, SDI or IP, RGBlink PTZ cameras provide a host of onboard features and functions. Advanced ISP image processing and algorithms enhance image performance from the sensor. Full 340 degree horizontal and 120 degree vertical range along with up to wide 72.5 degree viewing angle are provided, making RGBlink cameras suitable for demanding applications whether short throw or long.
Precise Head Control: With built-in high precision motor drive control, the camera can be re-positioned in under a second by 60 degrees and a zoom speed of 0.1 degree. Whether large movement or small, multi-speed movement is not only smooth and accurate, but super quiet. Automatic focussing powered with advanced algorithms enhances overall performance aiding ease of operation.
12X/20X/30X Optical Zoom: With a choice of three models, RGBlink PTZ cameras offer embedded 2D & 3D noise reduction and ISP image processing technology. The result is clear, vivid and balance video regardless of zoom angle.
Multi-Scene Preset: Create and store up to 255 presets with position, zoom and focus via the web interface. Assign presets to buttons for instant recall.
