- Scalable 4KE display for any room 80-160″ UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser 5,000 lumens CLO with 3LCD technology for brighter colours
- Effortless connectivity options Auto-on, wired/wireless display with USB 2A output for smart sticks
- Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
- LED/Video wall alternative Surprisingly affordable with low energy consumption
Epson Laser, On Board Wifi, Miracast V11HA99080
R84 462 Incl VAT
Laser, On Board Wifi, Miracast – No Bracket
5000Lm, 4K Enhancement , 1920 X 1080, 16:9, 2500000 : 1, Usb 2.0 Type A (2X), Usb 2.0 Type B, Rs-232C, Wired Network, Wireless Lan Ieee 802.11A/B/G/N/Ac, Hdmi In (2X), Hdmi Out, Hdbaset, Miracast, 12.5Kg
What’S In The Box: Power Cable, Quick Start Guide, Remote Control Incl. Batteries
Replacement: Dongle Elpap11, Air Filter Elpaf64, Wall Mount Elpmb75
- Super UST 4KE laser display
-

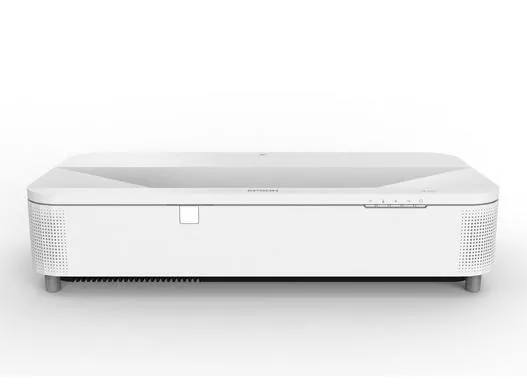

EB-810E, Epson’s first 4KE super-ultra-short-throw laser display designed for businesses, hybrid working and immersive spaces
-
The EB-810E can be placed just centimetres away from a wall to create bright 4KE images up to 160”.
-
It projects content in stunning clarity and offers a low cost, energy efficient large display solution with a convenient and quick set up.
Technology
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0,62 inch with C2 Fine
Color Light Output
5.000 Lumen- 3.500 Lumen (economy) In accordance with IDMS15.4
White Light Output
5.000 Lumen – 3.500 Lumen (economy) In accordance with ISO 21118:2020
High Definition
4K enhancement
Aspect Ratio
16:9
Contrast Ratio
Over 2.500.000 : 1
Light source
Laser
Laser Light source
20.000 hours Durability High, 30.000 hours Durability Eco
Colour Video Processing
10 Bits
2D Vertical Refresh Rate
192 Hz – 240 Hz
HDR support
HDR10, HLG
Optical
Throw Ratio
0,16 – 0,40:1
Zoom
Digital, Factor: 1 – 1,35
Lens
Optical
Screen Size
80 inches – 160 inches
Projection Lens F Number
1,8
Projection Lens Focal Length
2,3 mm
Projection Lens Focus
Manual
Offset
7 : 1
Connectivity
Interfaces
USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI in (2x), HDMI out, HDBaseT, Miracast
Epson iProjection App
Ad-Hoc / Infrastructure
Network Protocol
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security
Kensington lock, Control panel lock, Password lock, Padlock, Wireless LAN unit lock, Wireless LAN security, Password protection
3D
No
2D Colour Modes
Dynamic, Natural, Cinema, Presentation, Blackboard, DICOM SIM
Other features
21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Fit to Screen, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Source function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Interactivity
No
Video Color Modes
Blackboard, Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection
Projector control
via: AMX, Extron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption
290 Watt – On mode power consumption (Normal)
380 Watt (Peak), 286 Watt (Eco), 0,4 Watt (Energy saving standby)
380 Watt (Peak), 286 Watt (Eco), 0,4 Watt (Energy saving standby)
Heat Dissipation
1.292 BTU/hour (max)
Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions
695 x 341 x 156 mm (Width x Depth x Height)
Product weight
12,5 kg
Noise Level
Normal: 35 dB (A) – Economy: 26 dB (A)
Supported Temperature
Storage -10° C – 60° C
Supported Humidity
Operation 20% – 80%, Storage 10% – 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software
Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management, Epson Setting Assistant
Options
Air filter, Ceiling mount, Connection and control box, MB22 ceiling mount, Safety wire set, Visualiser camera, WP System – ELPWP10, WP System – ELPWP20, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
What’s in the box
Power cable, Quick Start Guide, Remote control incl. batteries
Room Type / Application
4K Streaming, Boardroom, Huddle space / Portable, Large Meeting Room / Auditorium, Meeting room / Classroom, Signage / Retail, Visitor Attraction
Positioning
Ceiling Mounted, Desktop, TV Cabinet, Wall Mounted
Colour
White
Other
Warranty
60 months Carry in or 12.000 h
