- Scalable FHD display for any room 49-150″ UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
- Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
- Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
- Document camera compatibility Create and record a live, totally immersive lesson or presentation

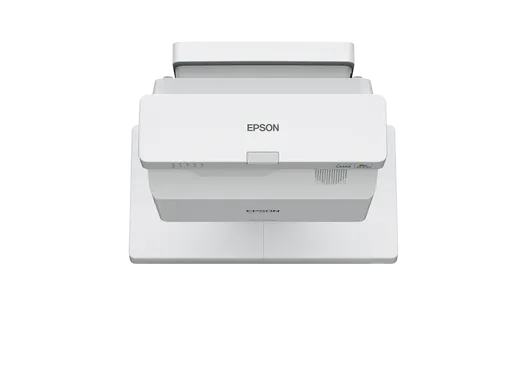

Epson Laser, On Board Wifi, Miracast V11HA79080
R47 499 Incl VAT
Laser, On Board Wifi, Miracast (White Case) – No Bracket
4100Lm, Full Hd , 1920 X 1080, 16:9, 2500000 : 1, Usb 2.0 Type A (2X), Usb 2.0 Type B, Rs-232C, Wired Network, Wireless Lan Ieee 802.11A/B/G/N/Ac, Vga In (2X), Vga Out, Hdmi In (3X), Composite In, Miracast, Jack Plug Out, Jack Plug In (3X), Usb 2.0 Type B (Service Only), Wi-Fi Direct, Microphone Input, 5.9Kg
What’S In The Box: Power Cable, Remote Control Incl. Batteries
Replacement: Dongle Elpap11, Air Filter Elpaf60, Control And Connection Box Elpcb03, Wall Mount Elpmb63
- Agile UST laser display
-
Drive engagement and communication with an affordable display, up to 150″, that will improve productivity in any environment.
-
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
-
The EB-770F’s bright, 1080p image, scalable up to 150″, is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience
Technology
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
0,62 inch with C2 Fine
Color Light Output
4.100 Lumen- 2.800 Lumen (economy) In accordance with IDMS15.4
White Light Output
4.100 Lumen – 2.800 Lumen (economy) In accordance with ISO 21118:2020
Resolution
1080p
High Definition
Full HD
Aspect Ratio
16:9
Contrast Ratio
Over 2.500.000 : 1
Light source
Laser
Laser Light source
20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction
Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing
10 Bits
2D Vertical Refresh Rate
192 Hz – 240 Hz
Colour Reproduction
Upto 1.07 billion colours
Optical
Throw Ratio
0,25 – 0,35:1
Zoom
Digital, Factor: 1 – 1,35
Lens
Optical
Screen Size
60 inches – 150 inches
Projection Lens F Number
1,6
Projection Lens Focal Length
3,7 mm
Projection Lens Focus
Manual
Offset
5 : 1
Connectivity
Interfaces
USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input
Epson iProjection App
Ad-Hoc / Infrastructure
Network Protocol
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Advanced Features
Security
Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Other features
21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Video Color Modes
Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
Projector control
via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption
197 Watt – On mode power consumption (Normal)
263 Watt (Peak), 199 Watt (Eco), 0,5 Watt (Energy saving standby)
263 Watt (Peak), 199 Watt (Eco), 0,5 Watt (Energy saving standby)
Heat Dissipation
895 BTU/hour (max)
Supply Voltage
AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions
356 x 395 x 133 mm (Width x Depth x Height)
Product weight
5,9 kg
Noise Level
Normal: 37 dB (A) – Economy: 27 dB (A)
Supported Temperature
Storage -10° C – 60° C
Supported Humidity
Operation 20% – 80%, Storage 10% – 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Included Software
Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
Options
Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System – ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter – ELPWT01
Loudspeaker
16 Watt
What’s in the box
Power cable, Remote control incl. batteries
Room Type / Application
Boardroom, Home Office, Meeting room / Classroom, Signage / Retail, Visitor Attraction
Positioning
Ceiling Mounted, Desktop, Table Mounted, Wall Mounted
Colour
White
Other
Warranty
60 months Carry in or 12.000 h
