Eco Features
- RoHS compliant
- Recyclable product11
- Epson America, Inc. is a SmartWay® Transport Partner12

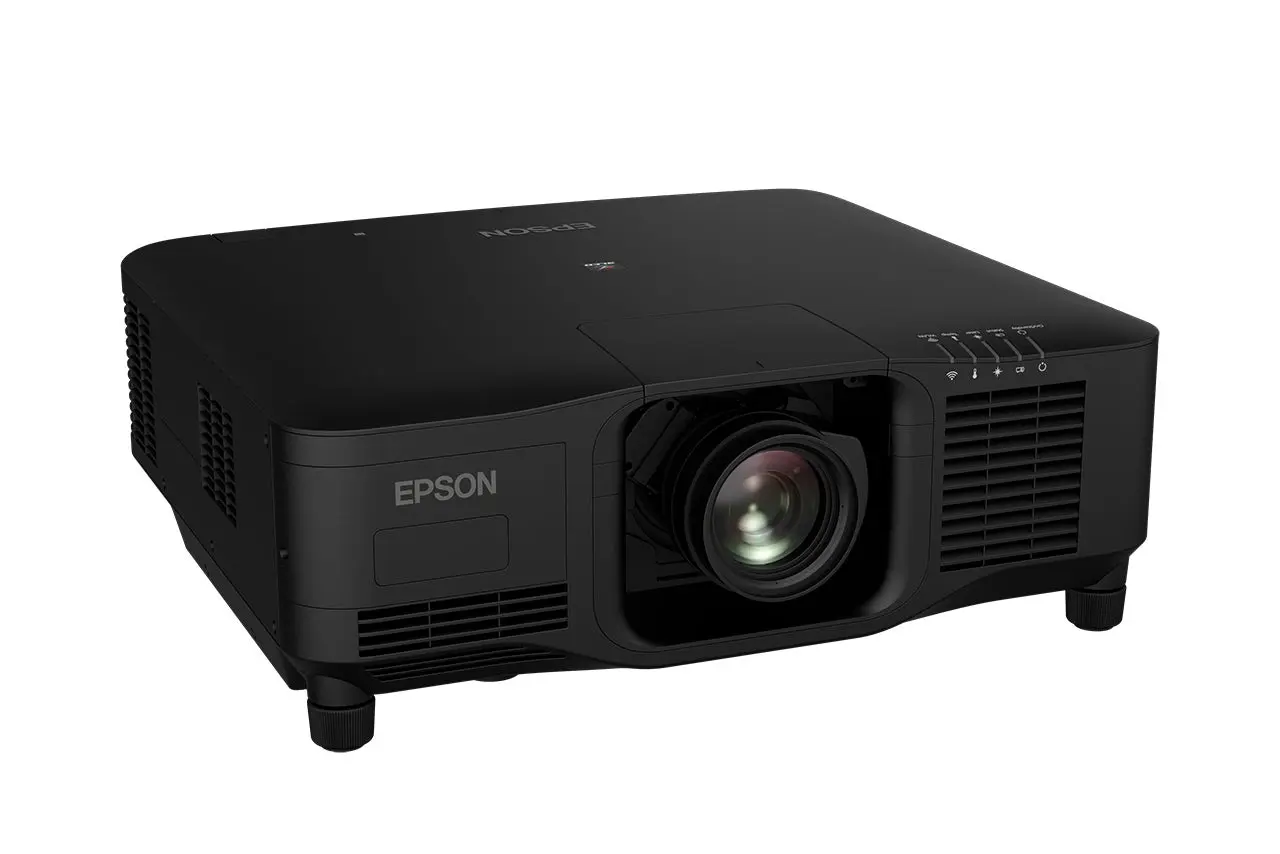

Epson WUXGA Laser projector, 13000 lumens – EBPU2213B V11HA68840 – EB-PU2213B
R305 416 Incl VAT
Laser, Wifi Optional, Hdbaset (Black Case)
13000Lm, Wuxga, 1920 X 1200, 16:10, 4K Enhancement, 2500000 : 1, Stereo Mini Jack Audio In (3X), Stereo Mini Jack Audio Out, Hdbaset, Bnc In, Hdmi In, Dvi In, Vga Out, Vga In, Wired Network, Rs-232C, Usb 2.0 Type B (Service Only), Hd-Sdi, Wireless Lan B/G/N (2.4Ghz) (Optional), 23.7Kg
What’S In The Box: Cd Manual, Cable Cover, Computer Cable, Power And Signal Cable (3 M), Quick Start Guide, Remote Control Incl. Batteries
Replacement: Optional Lenses Available On Spec Sheet, Dongle Elplp10, Air Filter Elpaf51, Hdbaset Transmitter Elphd03
- Premium large venue laser projector with 4K enhancement1
- Experience the power and flexibility of the EB-PU2213B 13,000-lumen2 large venue laser projector
- Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows
- The EB-PU2213B uses a 20,000-hour virtually maintenance-free laser light source3
- It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation
- The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality4, and the optional attachable PixAlignTM camera to streamline multi-projector setups
Specifications
Projection System High-aperture Epson 3LCD, 3-chip
technology
Projection Method Front/rear/ceiling mount
Driving Method Poly-silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3
Signal Input Maximum Display Resolution: 4096 x 2160
(resizing display); Display Resolution: 1920 x 1200 pixels
Native Resolution WUXGA with 4K Enhancement1
(1920 x 1200 x 2)
Resolution on Screen WUXGA with 4K Enhancement1
/
4.6 million pixels
Aspect Ratio Supports 4:3, 16:9, 16:10
Pixel Arrangement Cross stripe
Color Brightness2 Color Light Output: 13,000 lumens
White Brightness2 White Light Output: 13,000 lumens
Contrast Ratio 2,500,000:1 (Dynamic Contrast: On)
Brightness Uniformity (Typical) 85%
Color Reproduction Up to 1.07 billion colors
Lens Shift Vertical: ±60%; horizontal: ±18%
Keystone Correction Vertical: ±45 degrees;
horizontal: ±30 degrees
Illumination Technology Laser Diode
Projection Lens (Standard)
See website for information on optional lenses.
Standard Lens ELPLM15 (sold separately)
Type Powered shift/focus/zoom
F-Number 2.0 – 2.1
Focal Length 14.8 mm – 17.7 mm
Zoom Ratio Optical zoom: 1.0 – 1.6
Throw Ratio Range 1.57 – 2.56
Lens Shift Vertical: ±60%; horizontal: ±18%
Other Features
Operating Temperature 32 ˚ to 122 ˚F (0 ˚ to 50 ˚C)
Power Supply Voltage 100 – 120 V ± 10%, 50/60 Hz AC
Power Consumption
886 W (Normal / Custom)
646 W (Quiet / Extended)
2.0 W Standby (Network Standby)
0.4 W Standby (Energy Saving)
Fan Noise 34 dB (Normal Mode); 29 dB (ECO)
IP Rating IP5X9
Security Security cable hole, lens lock, Kensington®
lock provision, wireless LAN unit lock
Video I/O
Input Signal Input Video Signal (HDMI®, DVI-D and HDBaseT™
ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/
4096 x 2160
Dimensions / Weight
Including Feet (W x D x H) 23.1″ x 19.4″ x 8.6″
Weight 52.2 lb (23.7 kg)
Remote Control
Features Power; Source Search Selection; Lens Shift/Zoom/
Focus; Test Pattern Selection; A/V Mute, Freeze, User ID, Auto
Aspect, Color Mode, Number, Page Up and Down, E-Zoom,
Volume, Help, Menu, Enter, ESC and Pointer Functions
Operating Angle
Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +10 degrees
Operating Distance 98 ft
Eco Features
RoHS compliant
Recyclable product10
Epson America, Inc. is a SmartWay® Transport Partner11
Support
Epson ConnectionSM
Pre-sales support: U.S. and Canada: 800-463-7766
Internet website: www.epson.com
Service Programs
The projector has a limited warranty of 3 years
What’s in the Box
EB-PU2213B projector, power cable, remote control with two
batteries, cable cover, user guide and warranty sheet
Ordering Information
Epson EB-PU2213B V11HA68820
Ultra Short-Throw Lens (ELPLX02S) V12H004X0B
Ultra Short-Throw Lens – White (ELPLX02WS) V12H004Y0B
Short-Throw #1 Zoom Lens (ELPLU03S) V12H004UA3
Short-Throw #2 Zoom Lens (ELPLU04) V12H004U04
Wide-Throw #2 Zoom Lens (ELPLW06) V12H004W06
Wide-Throw #3 Zoom Lens (ELPLW08) V12H004W08
Middle-Throw #2 Zoom Lens (ELPLM15) V12H004M0F
Middle-Throw #3 Zoom Lens (ELPLM10) V12H004M0A
Middle-Throw #4 Zoom Lens (ELPLM11) V12H004M0B
Long-Throw Zoom Lens (ELPLL08) V12H004L08
Rigging Frame (ELPMB59) V12H996A01
Wireless LAN Module (ELPAP11) V12H005A02
Projector Ceiling Mount (ELPMB67) V12HA54010
Suspension Adapter (ELPFP15) V12HA55010
PixAlign Camera (ELPEC01) V12HA46010
Interfaces
3G-SDI in/out
HDMI x 1 (HDCP 2.3)
HDBaseT x 1
DVI-D x 1
VGA x 1
Variable audio out: Mini Stereo x 1
USB Type B x 1
USB Type A x 2 (5 V, 2.0 A)
USB Type A for Wireless LAN (optional)
Serial: RS-232C x 1 (9-pin)
Remote Mini Stereo
Network: RJ-45
Dimensions / Weight
Including Feet (W x D x H) 23.1″ x 19.4″ x 8.6″
Weight 52.2 lb (23.7 kg)
Remote Control
Features Power; Source Search Selection; Lens Shift/Zoom/
Focus; Test Pattern Selection; A/V Mute, Freeze, User ID, Auto
Aspect, Color Mode, Number, Page Up and Down, E-Zoom,
Volume, Help, Menu, Enter, ESC and Pointer Functions
Operating Angle
Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +10 degrees
Operating Distance 98 ft
Eco Features
RoHS compliant
Recyclable product10
Epson America, Inc. is a SmartWay® Transport Partner11
Support
Epson ConnectionSM
Pre-sales support: U.S. and Canada: 800-463-7766
Internet website: www.epson.com
Service Programs
The projector has a limited warranty of 3 years
What’s in the Box
EB-PU2213B projector, power cable, remote control with two
batteries, cable cover, user guide and warranty sheet
| Brand | Epson |
|---|
