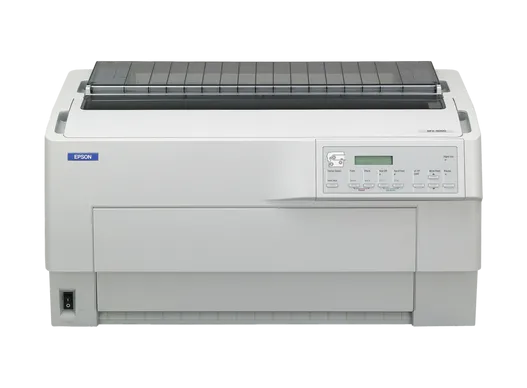

Epson Printer Dot Matrixs C11C605011BZ DFX-9000

R76 249 Incl VAT

A3, Network Optional – These Are Only Ordered By Special Request
136 Columns, 36 Needles (4 X 9Pins), 9 Plus One Original, Usb 2.0 Type B, Wired Network (Optional), Bidirectional Parallel, Rs-232, Type B Interface, 34Kg
What Is In The Box: Driver And Utilities (Cd), Main Unit, Power Cable, Ribbon, Setup Guide, Software (Cd), User Manual (Cd), Warranty Document
Replacement: Ribbon C13S015384Ba (15M Characters), Serial I/F Board C12C824432, Sidm 10/100 Basetx Internal Print Server 1620202
SKU: C11C605011BZ DFX-9000 Category: Tags: ,

Key Features

  • Fastest 9-pin heavy duty dot matrix printer in its class
  • Hard working with 133 million lines print volume
  • High durability with MTBF of 20,000 power on hours
  • Prints up to 10 part forms (1 original + 9 copies)
  • Standard USB, Serial and Parallel interfaces (optional network, twinax, coax)
  • Flexible paper handling with two tractors as standard
  • The fastest heavy-duty 9-pin printer in its class handles up to 10 part forms and prints at up to 1550cps for rock-solid, high-volume printing

Tech Specs

The product features and specifications are subject to change without prior notice
Technology
Printing Method
Impact dot matrix
Number of Pins
9 pins
Number of columns
136 columns
Pins
36 Needles (4 x 9)
Print
Printing Speed
HighSpeed-Draft: 10 cpi: 1550 chars/s, 12 cpi: 1450 chars/s, Draft: 10 cpi: 1320 chars/s, NLQ: 10 cpi: 330 chars/s
Carbon Copies
9 plus one original
Printing Resolution
240 x 144 DPI
Connectivity
Interfaces
USB 2.0, Ethernet interface (100 Base-TX / 10 Base-T) (optional), Bidirectional parallel, RS-232, Type B interface
Paper / Media Handling
Document Feed
Continuous media front and rear, Paper output rear, bulk measurement: yes
Paper Formats
Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer)
General
Power consumption
185 Watt, 75 Watt (standby)
Product dimensions
700‎ x 378 x 363 mm (Width x Depth x Height)
Product weight
34 kg
Supported Temperature
Operation 5° C – 35° C
Supported Humidity
Operation 10% – 80%
Compatible Operating Systems
Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Included Software
Epson Status Monitor
Mean Time Between Failures
20.000 hours
Print Head Life
200 Million Strokes/Wire
Noise
Operation: 58 dB (A)
Memory
128 kB Included
Ribbon Yield
15000000 characters Black Draft
What’s in the box
Driver and utilities (CD), Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Other Features
Emulations
IBM PPDS, ESC/P
Other
Warranty
12 months On-site service
Brand

Epson
