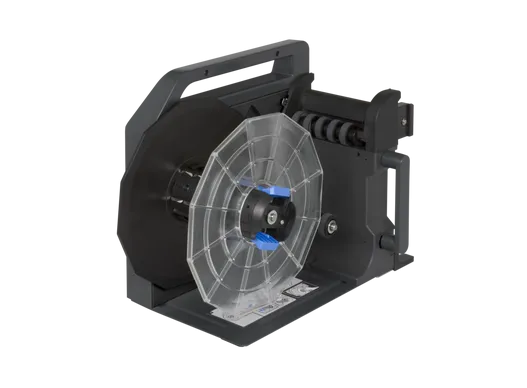

Rewinder for Epson C6500/C3500/OKI Pro1050/Afinia L502 EP-C32C815471

Rewinder for Epson C6500/C3500/OKI Pro1050/Afinia L502 EP-C32C815471

Name: Rewinder for Epson C6500/C3500/OKI Pro1050/Afinia L502 EP-C32C815471
Brand: Epson
SKU: EP-C32C815471
Price: 16533 ZAR
Availability: InStock

R16 533 Incl VAT

TU-RC7508 Rewinder , Unwinder

The Roll to Roll system specifically designed for the Epson C6500 color label printer can handle rolls up to 8.66” (220mm) media wide and having an outside diameter up to 10” (250mm). Both Unwinder and Rewinder are equipped with a fixed 3” core holder.

The automatic label unwinder (UW6500A/P) increases the input roll capacity. Rolls are loaded with labels facing out. The label rewinder (RW6500A/P) can rewind labels facing in or facing out. It can also be used to rewind waste release liner.

SKU: EP-C32C815471 Category: Printers Tags: Colour Printers, Epson, Label Printers

The printer plate (JPL-6500A/P) is recommended to guarantee an aligned media path. The printer will be locked over the printer plate.

Multiple configurations are available:

High capacity roll to roll
External label unwinder
External label rewinder
External release liner rewinder – specifically made for the C6500P to rewind the waste liner

An external power supply 100/240VAC – 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the automatic adjustment of the rotation direction and speed.

General:

Dimensions for Unwinder & Rewinder with C6500A:
- L (config. 1) = 118cm (46.45”)
- L (config. 2) = 90cm (35.43”)
- L (config. 3) = 86cm (33.85”)
- W (config. 1, 2, 3) = 45cm (17.71”)
- H (config. 1, 2, 3) = 33cm (12.99”)
Dimensions for Unwinder & Rewinder with C6500P:
- L (config. 1) = 107cm (42.12”)
- L (config. 2) = 91cm (35.82”)
- L (config. 3) = 78cm (30.70”)
- W (config. 1, 2, 3) = 45cm (17.71”)
- H (config. 1, 2, 3) = 40cm (15.74”)
External power supply 100/240VAC – 2.5A at 24V
Maximum roll diameter: 25cm (10”)
Maximum media width: 22cm (8.66”)
3” fixed core holder
