- Professional conferencing camera for mid-to-large rooms
- Present Every Detail with an 24X* Total Zoom
- Hold Efficient and Safe Meetings with Upgraded AVer SmartFrame
- Access Video Calls Without the Hassle of Connecting a USB Cable!
- Share Live Video Online Anytime with IP Streaming
- Enterprise-Grade Imaging with True WDR

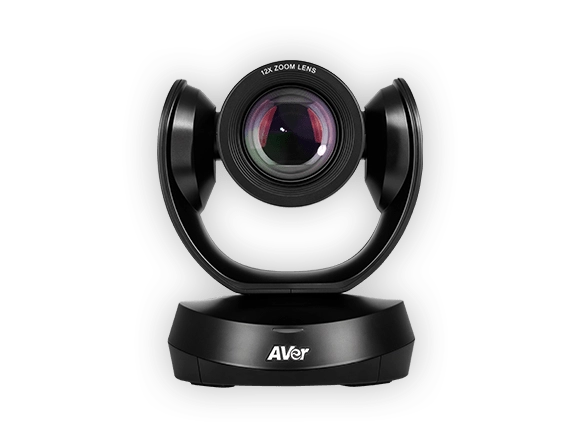

PPM AVer CAM520 Pro 2 PTZ Conferencing Camera (USB/IP/PoE+) AVER_CAM520P2″
R26 738 Incl VAT
| AVer CAM520 Pro 2 PTZ Conferencing Camera (USB/IP/PoE+) |
| – Full HD 1080p @ 60fps |
| – 12x Optical Zoom |
| – 76 Degree Horizontal Field of View |
| – Video Output |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – USB 3.1Â Output |
| – AI Functions |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – Smart Frame |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – Innovative Preset Framing |
| – Power Supply |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – AC100V-AC240V to DC12V / 2Amp |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – PoE+ |
| Â – Control |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – RS232 Control (In / Out Combo Port) |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – LAN Control (Visca over IP) |
| – Warranty |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – 3 Year Warranty |
| – Software Included |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – Aver PTZApp2* |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â – Aver EZLive* |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â * No Licensing Fees |
- Professional conferencing camera for mid-to-large rooms
- The CAM520 Pro2 is an industry-leading conferencing camera. Its 24X total zoom, upgraded AVer SmartFrame, Preset Framing, Sony True WDR, IP video streaming, and a PoE port take your video conferencing experience to the next level!
- Camera:
- Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
- Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
- SmartFrame for automatic FOV adjustment to fit all participants
- Smart Gallery* function offers great visibility for individual participant in the meeting room
- Innovative Preset Framing: Follow presenter based on preset areas
- True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
- Zoom: 24X* total zoom (12X optical zoom)
- Field of view(D/H/V):84.5°/76°/48°
- Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
- Lens F#: 1.8 (wide) ~ 2.8 (tele)
- Mirror, flip, AE, white balance: auto/manual override via PTZApp 2
- Minimum focus distance: 1.5 m
- Standard tripod screw holes and Kensington slot
- People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
- Please use PTZApp 2 to set up Smart Gallery and 24X zoom.
- Motorized Pan & Tilt Movement:
- Pan: ±170°
- Tilt: +90° (up) -30° (down)
- 10 camera presets (via remote control)
- Fast and quiet pan/tilt movement
- Connectivity:
- 12V/2A power adaptor
- Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
- USB 3.1 type-B connector
- IP (RJ45)
- Video Format:
- YUV, YUY2, MJPEG, NV12
- Network video compression format: H.264, H.265
- Network protocol: RTSP, RTMP
- USB:
- 3.1 Gen 1, backward compatible with USB 2.0
- UVC 1.1 (USB video), UAC 1.0 (USB audio), UVC1.5*
- *UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.
- Control:
- IR remote control
- VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
- Remote side: VISCA over IP, IP (RJ45)
- UVC/UAC plug and play
- WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
- PTZApp 2
- Mount:
- Camera wall-mount bracket included
- Optional foldable TV mount
- Optional ceiling mount
- Optional Accessories:
- Mini DIN8 to D-SUB9 RS232 adapter
- Foldable TV mount
- Ceiling mount
- USB3.1 fiber extender 10m/20m/30m
- USB3.1, 3m type-B to type-A cable
- Warranty:
- Camera: 3 years
- Accessories: 1 year
- System Requirements:
- Windows® 7/10/11
- Mac OS X 14.4 or higher
- Chromebox 3 version 94.0.4606.114 or later
- Hardware Specs:
- 3.2 GHz Intel® Core™ i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port , backward compatible with USB2.0 port
- Power Supply:
- AC 100V ~ 240V, 50/60 Hz
- Consumption: 12V, 2A
- PoE+: 802.3at
- Environmental Data:
- Operation temperature: 0°C ~ 40°C
- Operation humidity: 20% ~ 80%
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 20% ~ 80%
- Dimensions:
- Package dimensions: 256 x 256 x 274 mm
- Package weight: 3.335 kg/7.35 lbs
- Camera: 182 x 142.7 x 153 mm/1.47 kg
- Remote control: 200 x 50 x 21 mm/0.09 kg
- Package Contents:
- CAM520 Pro2 unit
- Remote control
- 5m, USB2.0 type-B to type-A cable
- Power adapter (10 ft/3 m)
- QR code card
- Wall-mount bracket
- ¼” tripod screw
- Mini DIN9 to mini DIN8 RS232 adapter
- Compatible Applications:
- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
- Free Applications for Meeting Collaboration
(Free Apps support on Windows® and Mac® computers) - 1. EZManager 2: Camera Central Management Software
- Remotely group FW/SW upgrades, control the camera, and manage settings
- 2. PTZApp 2: Camera Setting Software
- View live video, people counting number, meeting interval information
- Enable Skype for Business far-end control
- Upgrade firmware automatically or manually
- Control the camera
- Set parameters and adjust the camera image
- Diagnose operating status
- 3. EZLive: Broadcasting Software
- Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording
